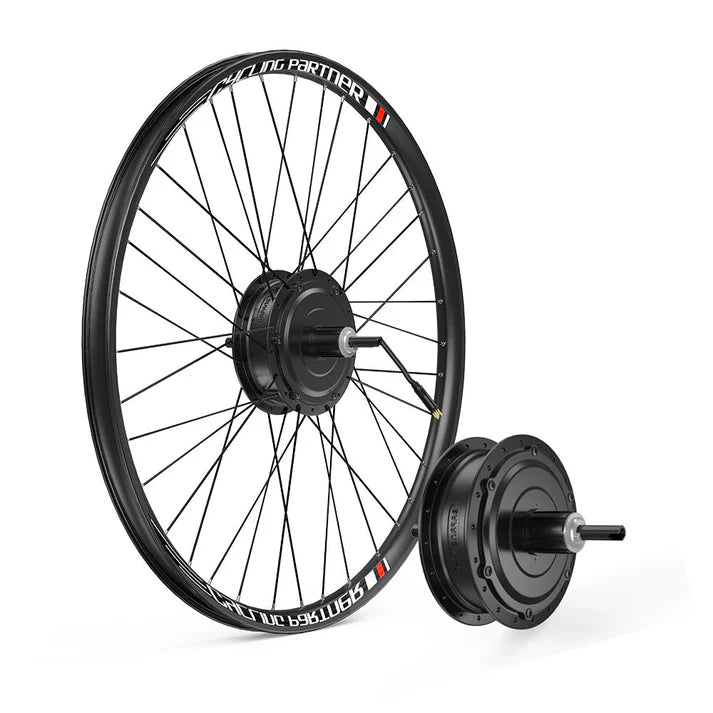

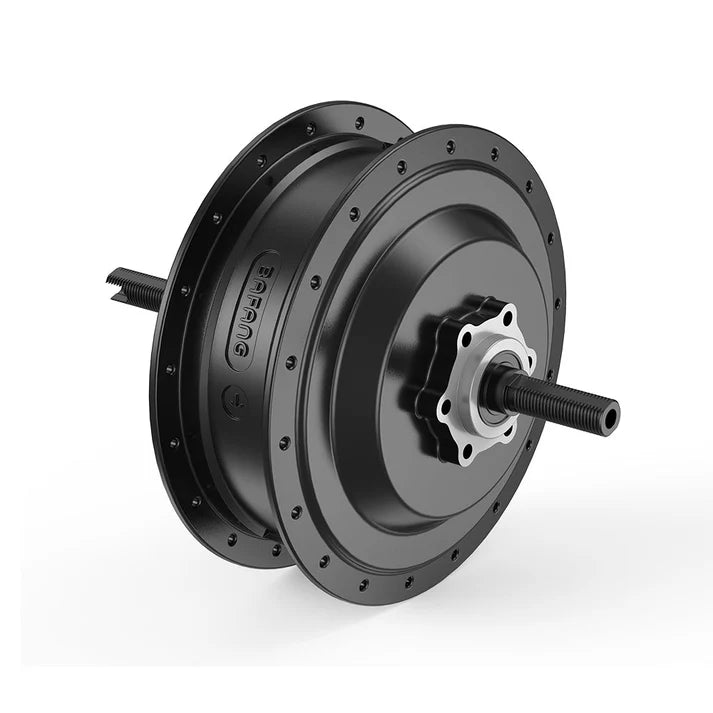

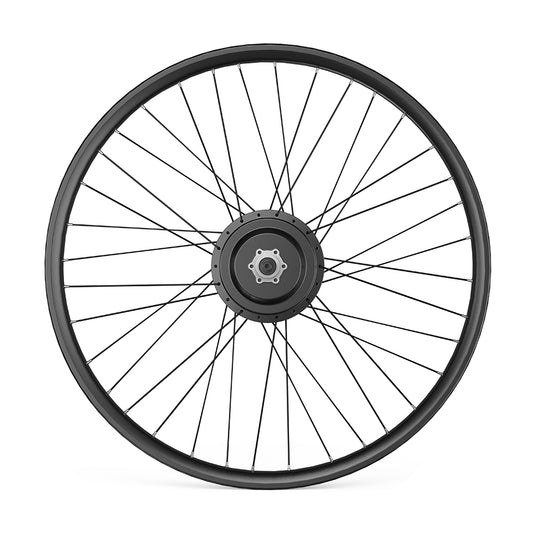

BAFANG 48V 500W Rear Hub Motor kit

Product Core Data

Model No.: RM G020.500.D/DC
Position: Rear Mtor
Usage: eCity, eTour, eMTB

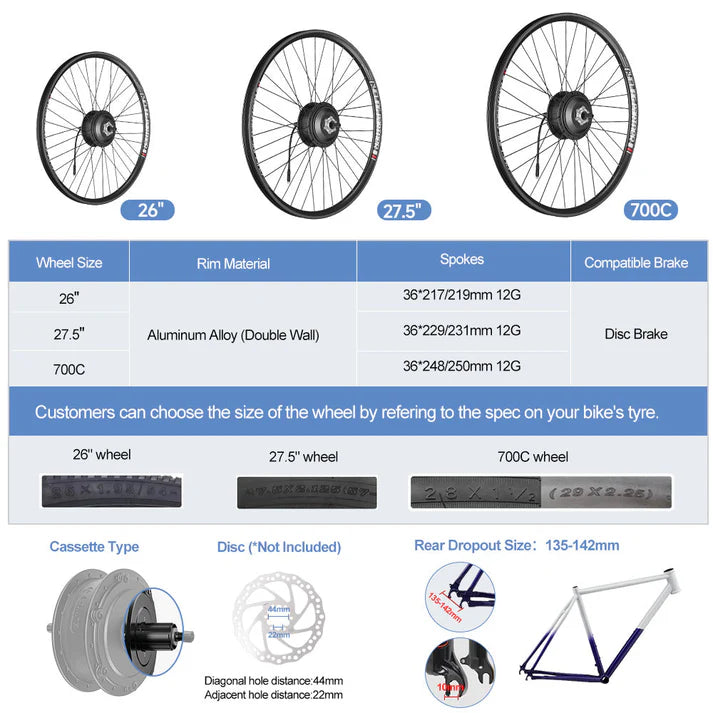

Wheel Size (Inch): 26/27.5/700C
OLD (mm): 138
Norminal Voltage (Vdc): 48
Rated Power (W): 500
Max Speed (km/h): 35
Max Torque (N.m): 55
Color: Black
Weight (kg): 3.3Brake: Disc Brake
Cable Length (mm): 250
Connection Type: G9.1
Spoke Specification: 36H*13G
Tests & Certifications: IP X5/ROHS/CE

Controller Spec.

• Rated Voltage: 48V
• Rated Current: 9A
• Maximum Current: 18A
• Low Voltage Protection: 39V

Brake Type

We will send you V-brakes version if you ship to the US;

We will send you Disc Brakes version if you ships to other countries;

eBrake levers is the default brake levers, leave a message if you want to get eBrake Sensors.

Package Include

E-Bike Conversion Kit

1*BAFANG Rear Hub Motor Wheel

1*Motor Controller

1*Motor Controller Box

2*eBrake Levers or Brake Sensors (By default, you'll receive the eBrake levers. Or specify your preference via email after ordering.)

1*1T4 Cable

1*Motor Extension Cable

1*Thumb Throttle

1*PAS Sensor

Free Gifts:

1*6V Front Light

1*36V 250W Label

n*Cable Ties

Optional Parts (If you buy)

1*Display (UART Protocol)

1*Battery & Charger
