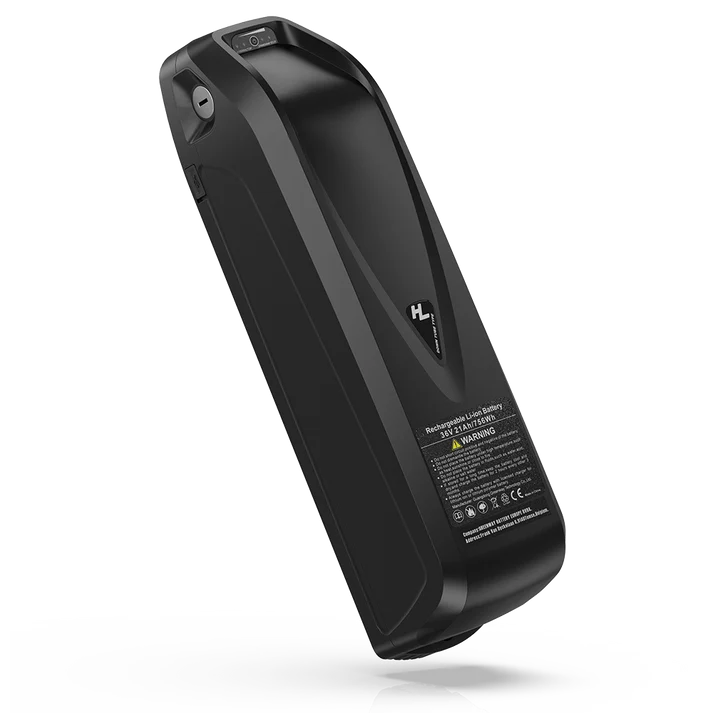

Varstrom 48V HaiLong Battery

Mileage for 48V 18.0/19.2/20.0Ah HaiLong Mas G80 Downtube Battery

Conservative Mileage for 48V 19.2Ah Used on Motors

• Throttle Mode: 74km (48V/250W), 59km (48V/500W), 55km (48V/750W)
• PAS Mode: 148km (48V/250W),118km (48V/500W), 110KM (48V/750W)

Conservative Mileage for 48V 20.0Ah Used on Motors

• Throttle Mode: 77km (48V/250W), 60km (48V/500W), 58km (48V/750W)
• PAS Mode: 154km (48V/250W),120km (48V/500W), 116KM (48V/750W)

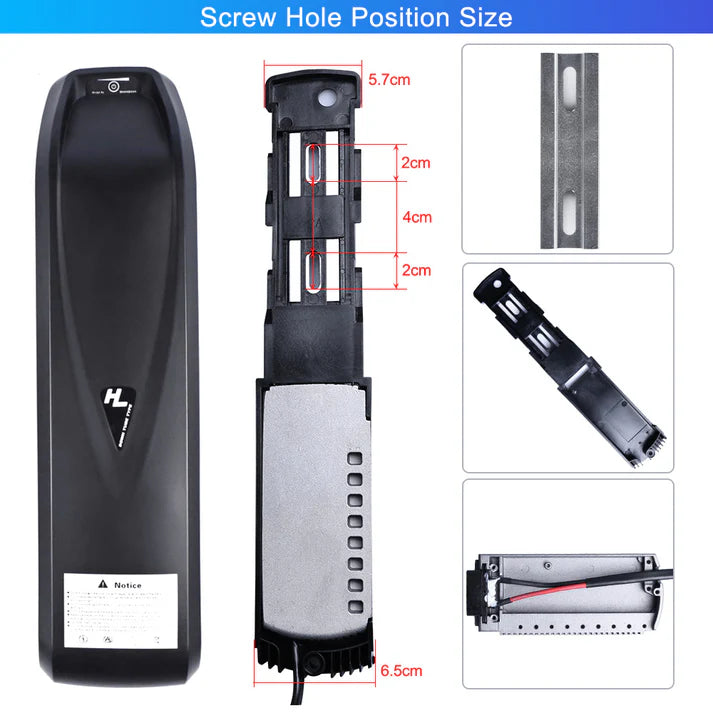

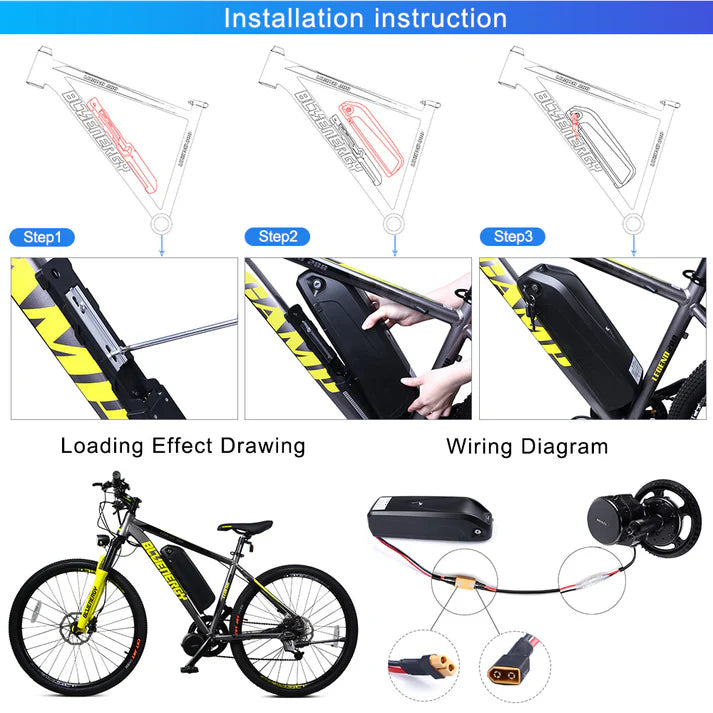

Battery Installation Measurement

• Battery and Socket (inch): 14.66*3.58*4.97

File: Hailong_G80_large_battery_installation_measurement

Suitable Motor

If you want to buy a Varstrom eBike battery as replacement, please know that Varstrom battery can be the power source for the BAFANG UART protocol mid drive conversion kits or BAFANG hub kits. But it is not suitable for BAFANG CAN protocol mid drive motors.

• BBS01B: 48V/250W;
• BBS02B: 48V/500W, 48V/750W, 48V/750W (100mm);
• BBSHD: 48V/1000W, 48V/1000W (100mm), 48V/1000W (120mm).

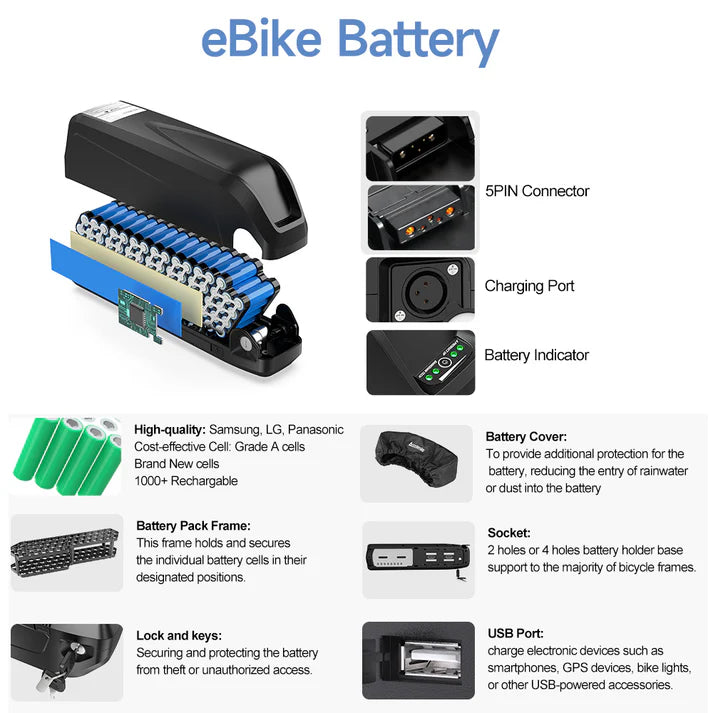

Battery Management System

• Overpower Protection

• Over Voltage Protection

• Over Current Protection

• Over Discharge Protection

• Overcharge Protection

• Short Circuit Protection

• Cell Balancing

Anti-theft Safe Lock

Ebery Varstrom Hailong battery has the lock and keys, the lock can help to fix the battery and prevent others from taking the battery, you can use the keys to lock the battery when you install it on the socket and unlock to take the battery for charging.

USB Connector Avaliable

Each Hailong battery is equipped with a USB port, which can charge your mobile phone or other devices. At the same time, you can judge the power of the battery through the indicator light of the battery. 1 Red+3 Green (100%), 1 Red+2 Green (75%), 1 Red+1 Green (50%), 1 Red+0 Green (25%), it means you need to charge the battery.

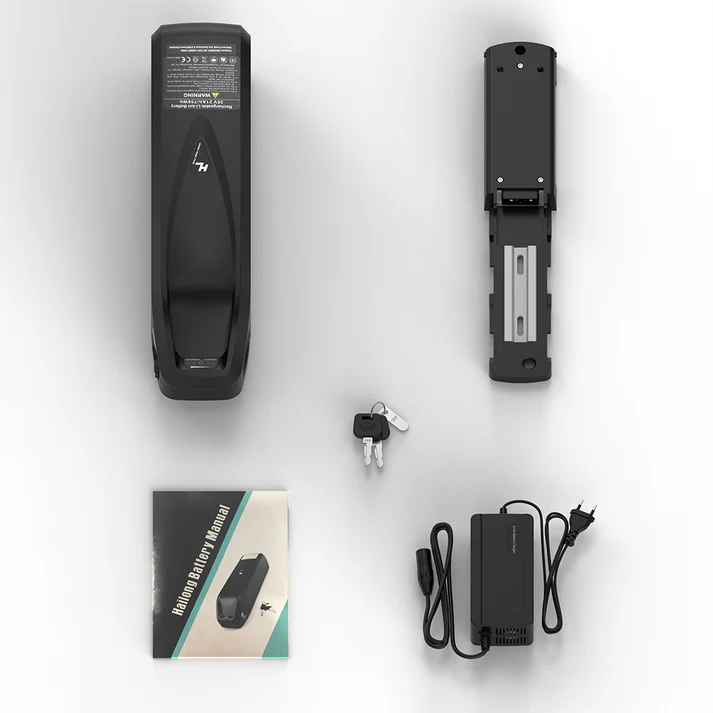

Package Include

• 1*eBike Battery
• 1*Charger
• 1*XT 60 Cable
• 1*Waterproof Bag
